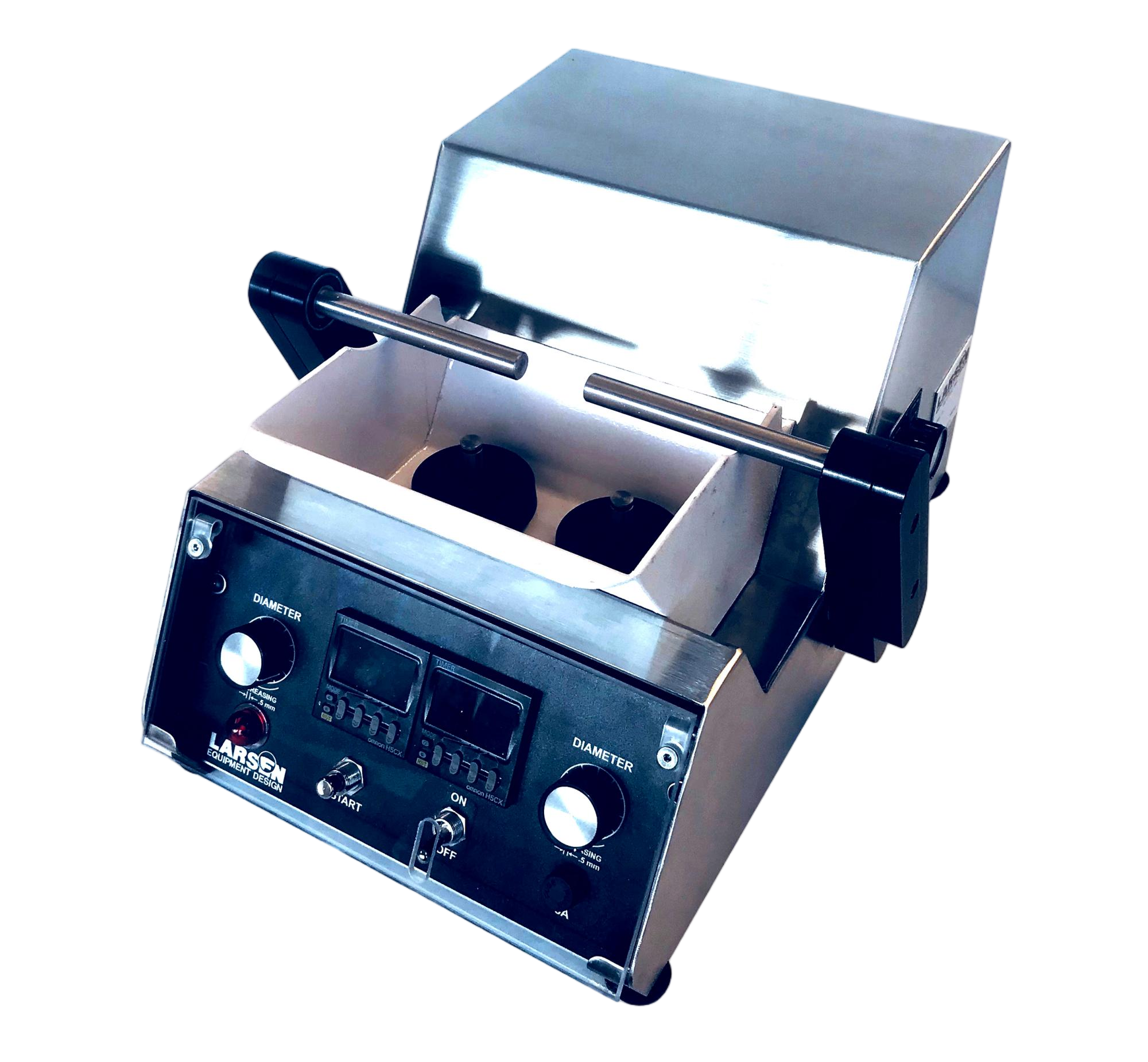

Two Spindle Edge Roller

ER-202

This new machine combines the proven feature of a drum (disk) sponge tool with modern control and vacuum features. It retains the Larsen mark of quality in the stainless-steel construction and ease of maintenance. While the machine works great on lathe turned edges, it excels on “un-cut” irregular scleral lens edges.

Operator friendly features include:

· Self-contained low/high vacuum independently controlled on each lens spindle, no external vacuum pump is needed.

· Lens spindle speed control for low speed to assist in centering, then high speed rolling.

· Automatic/Manual lens spindle engagement reduces operator fatigue.

· Assortment of suction cups for corneal and scleral lenses.

· Digital cycle time control.

· Direct lens diameter control.

· Lateral offset for front/back rolling.

Specifications:

Weight: 30 lbs. (14 kg)
Size: 9” X 17” X 16” (230 mm X 430 mm X 400 mm)
Power: 120 or 240 VAC, 3 amps.
Air supply: 100 psi (6-7 bar) .1 CFM, 3 LPM
