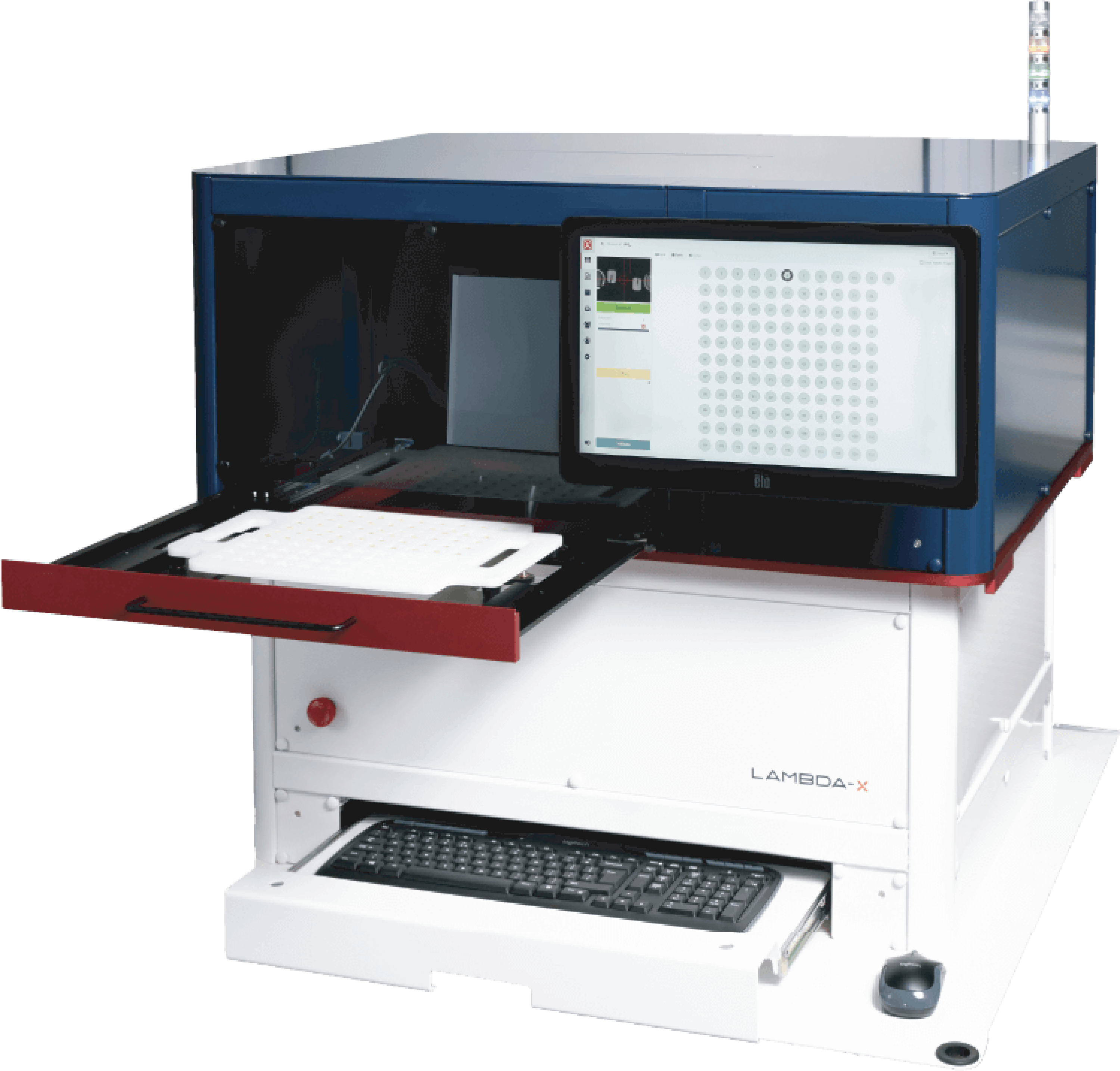

NIMO MATRIX is optical tester for intraocular lenses (IOLs) batches measurement for production process. It can automatically measure all types of refractive IOLs in production line, with a throughput of up to 300 pieces per hour, greatly improving production line inspection efficiency.

Features

Batch measurement at throughput of around 300 pcs per hour

5in1 measurement:  Power, MTF, Dimension, Thickness and Decentration

Both in Dry and Wet measurement

Real-time power and MTF data

Tray can hold up to 121 pieces

Customized Tray upon customer request

Non-paraxial Model Eye available for high measurement accuracy

Function:

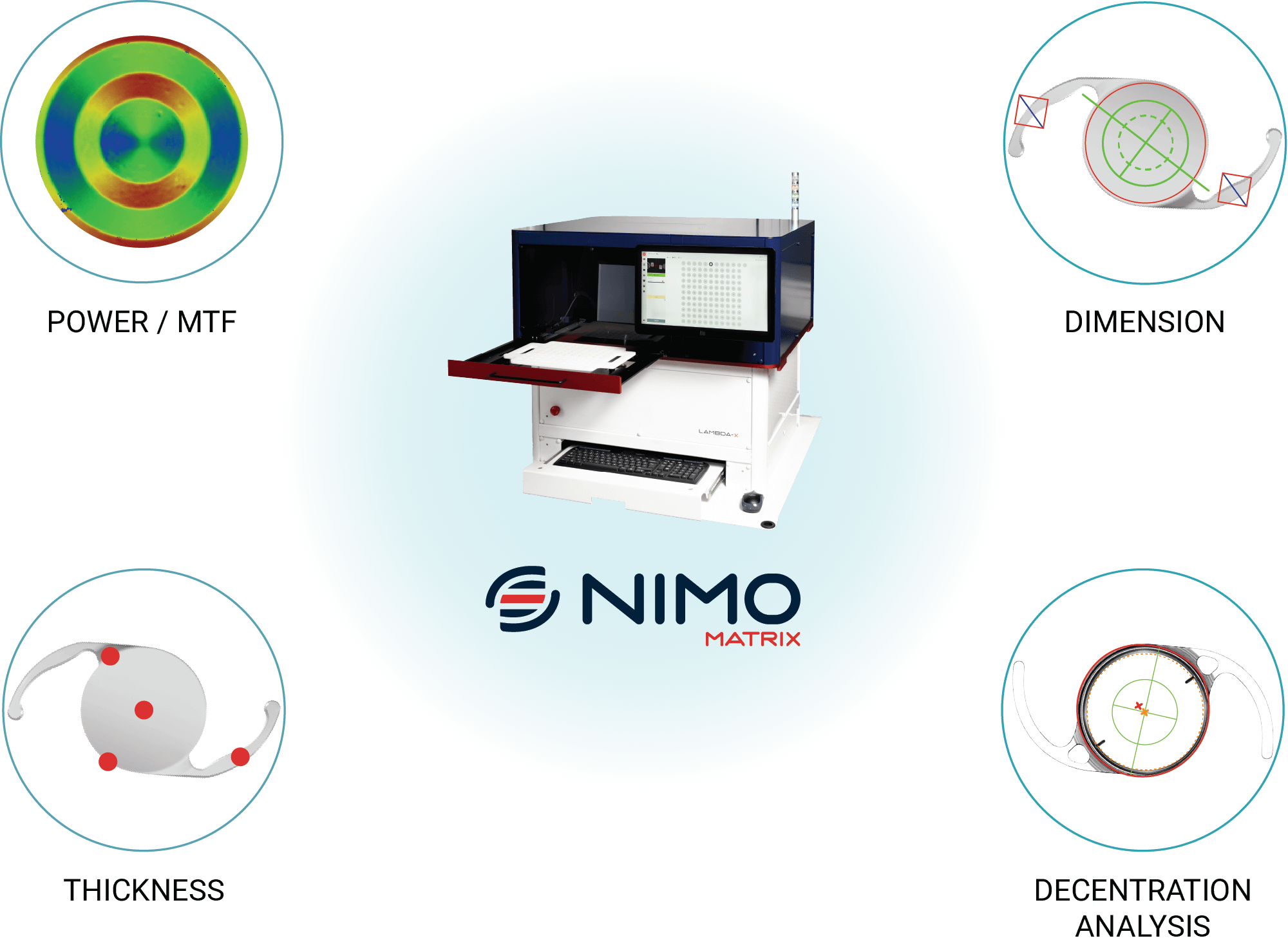

5in1 measurement:  Power, MTF, Dimension, Thickness and Decentration Analysis

Power

NIMO MATRIX accurately evaluates the optical characteristics of IOLs. It generates high-resolution wavefront map and power profile, while measuring parameters including sphere, cylinder and Add. It is an essential instrument for IOL manufacturers to produce high quality products.

MTF

NIMO MATRIX supports detailed MTF calculation. The through-focus (TF) curve allows accurate analysis of IOL imaging performance.

Dimension

NIMO MATRIX can offer accurate measurement on the dimension.  It can measure overall diameter, optical zone diameter, haptic width to ensure the IOL factories can take full control of dimension in the production.

Thickness

NIMO MATRIX possess strong thickenss measurement capability.  With advanced technology, it is allowed to measure thickenss at different position on the IOLs such as center, edge and haptics.

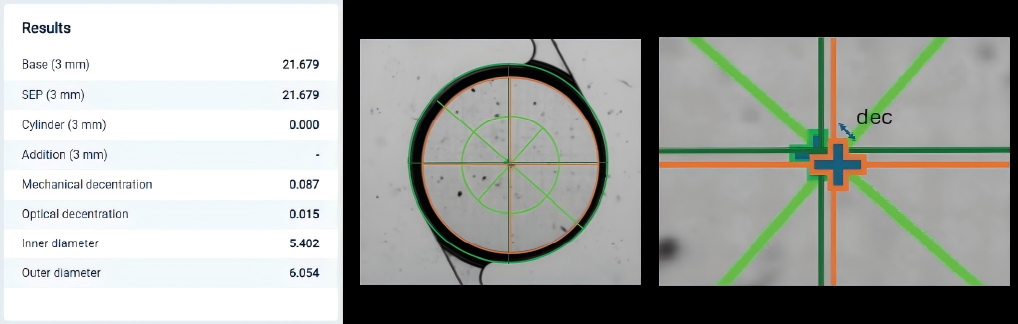

Decentration Analysis

The Decentration Analysis plugin measures and verifies the alignment between the optical and geometrical centers of an IOL. It ensures that the optics are properly centered relative to the lens body, helping to guarantee lens quality and compliance in production.
